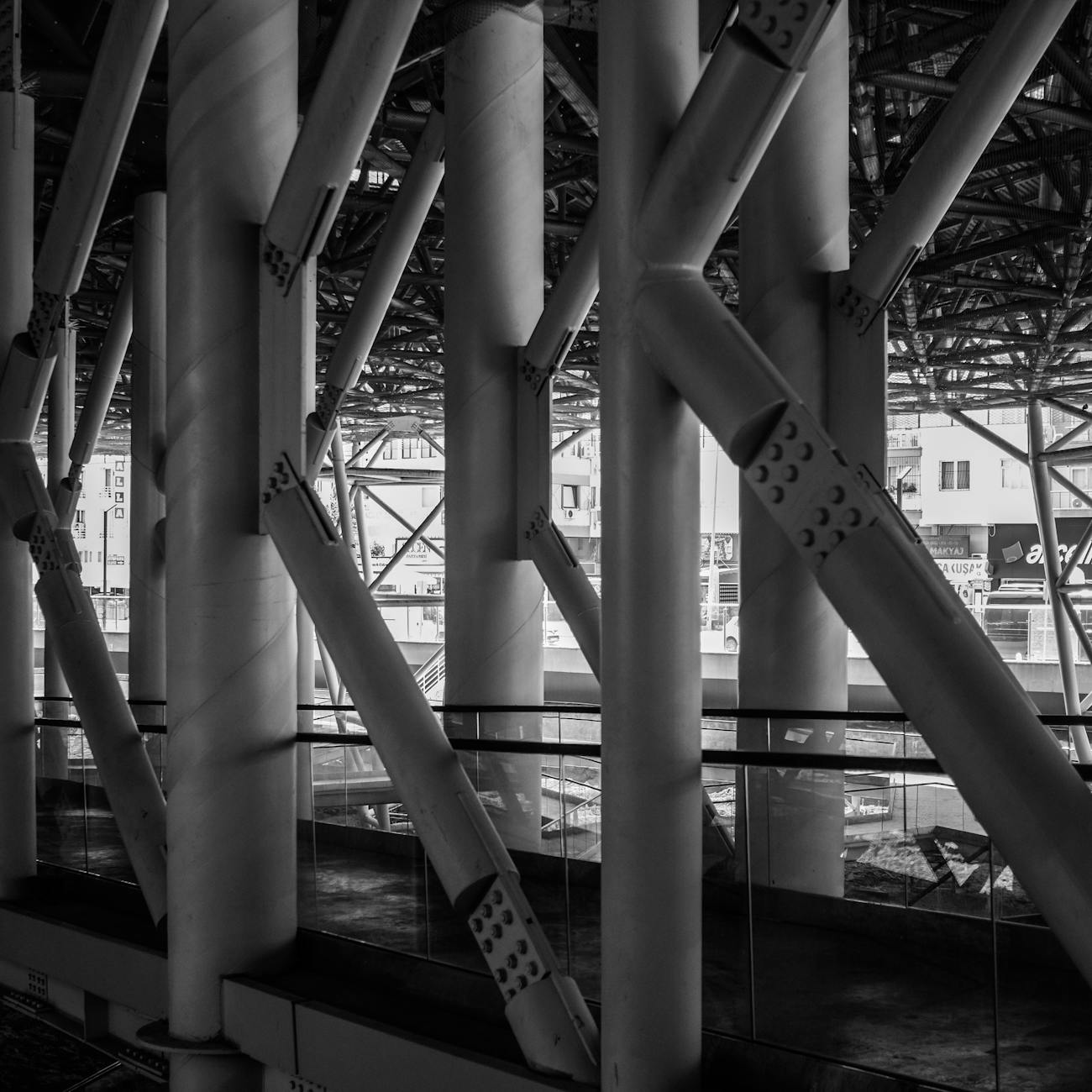

Loadings on Steel Structures

Loadings on Steel Structures #

Loadings on steel structures refer to the external forces and loads that act on… #

Understanding the different types of loadings that a steel structure may be subjected to is crucial in ensuring the safety and efficiency of the structure.

Dead Load #

The dead load is the static load that results from the weight of the structure i… #

Dead loads remain constant over time and do not vary, providing a stable foundation for design calculations.

Live Load #

Live loads are dynamic loads that are not constant and can change over time #

These loads are caused by the occupancy of the structure, such as people, furniture, equipment, and vehicles. Live loads are considered variable and are factored into the design to ensure the structure can safely support them.

Wind Load #

Wind loads are lateral forces generated by the wind that act on the structure #

These loads are influenced by factors such as the height, shape, and location of the structure, as well as the wind speed and direction. Wind loads can impact the stability and structural integrity of a steel structure, requiring careful consideration during the design process.

Snow Load #

Snow loads are vertical loads caused by the weight of snow accumulation on the r… #

The magnitude of snow loads depends on factors such as the location, climate, roof shape, and exposure. Designing for snow loads is essential to prevent structural failure and ensure the safety of occupants.

Seismic Load #

Seismic loads are dynamic forces that result from earthquakes and ground motion #

These loads can cause significant damage to a structure if not properly accounted for in the design. Designing for seismic loads involves considering the seismic hazard of the region, the soil conditions, and the structural response to ground motion.

Dynamic Load #

Dynamic loads are transient forces that act on a structure due to moving loads,… #

These loads can lead to structural fatigue, deformation, or failure if not properly addressed in the design. Dynamic loads are typically calculated based on the expected frequency and magnitude of the loadings.

Impact Load #

Impact loads are sudden and short #

duration forces that exceed the typical loads acting on a structure. These loads can result from events such as vehicle collisions, equipment malfunction, or falling objects. Designing for impact loads requires considering the potential consequences of such events on the structural integrity.

Concentrated Load #

Concentrated loads are point loads that act on a specific area or point of a str… #

These loads are typically applied at discrete locations, such as the support points of beams or columns. Concentrated loads can cause localized stresses and deflections, requiring careful analysis and design considerations.

Uniformly Distributed Load #

Uniformly distributed loads are loads that are evenly distributed over a specifi… #

These loads create a constant pressure or force along the span of a member, such as the weight of a roof or floor. Designing for uniformly distributed loads involves calculating the total load and distributing it appropriately to ensure structural stability.

Overturning Moment #

An overturning moment is a moment that causes a structure to rotate or tip over #

It is typically caused by an imbalance of forces or loads acting on the structure. Designing to resist overturning moments involves ensuring that the center of gravity of the structure remains within the base of support to prevent instability.

Horizontal Shear Force #

Horizontal shear forces are forces that act parallel to the plane of a structure… #

These forces can result from wind loads, seismic loads, or other lateral loads. Designing to resist horizontal shear forces involves selecting appropriate connections, bracing, and member sizes to ensure structural integrity.

Bending Moment #

A bending moment is a moment that causes a member to bend or deform under load #

It is a result of the internal stresses and forces acting on a structural member, such as beams or columns. Designing to resist bending moments involves selecting the appropriate material properties, member sizes, and support conditions to ensure structural stability.

Torsional Moment #

A torsional moment is a moment that causes a member to twist or rotate under loa… #

It is typically caused by eccentric loads, asymmetric loading, or lateral forces acting on a structure. Designing to resist torsional moments involves selecting appropriate cross-sectional shapes, connections, and bracing to prevent structural failure.

Combined Loading #

Combined loading refers to the simultaneous action of multiple types of loads on… #

The interaction of different loadings, such as dead loads, live loads, wind loads, and seismic loads, can result in complex stress patterns and structural behavior. Designing for combined loading requires careful analysis and consideration of all potential load combinations to ensure structural safety.

Serviceability Limit States #

Serviceability limit states are the conditions under which a structure may exper… #

Designing to meet serviceability limit states involves considering factors such as deflection limits, vibration frequencies, and durability requirements.

Ultimate Limit States #

Ultimate limit states are the conditions under which a structure may experience… #

Designing to meet ultimate limit states involves ensuring that the structure can safely resist the maximum expected loads without compromising its stability or integrity. Ultimate limit states are critical for ensuring the safety and longevity of a steel structure.

Load Combinations #

Load combinations are sets of different loadings that are applied simultaneously… #

These combinations typically include various combinations of dead loads, live loads, wind loads, and other relevant loadings to determine the most critical loading scenarios. Designing for load combinations involves considering the effects of multiple loadings on the structure and selecting appropriate safety factors to ensure structural safety.

Load Path #

A load path is the route that the loads take through a structure from the point… #

It includes the flow of forces and stresses through the structural elements, such as beams, columns, and connections. Designing an efficient load path is essential for ensuring that the structure can safely resist the applied loads and distribute them effectively to prevent localized failures.

Load Transfer #

Load transfer is the process by which loads are transferred from one structural… #

It involves the distribution of forces and stresses through the connections, beams, columns, and other components to ensure structural stability and integrity. Designing for effective load transfer involves selecting appropriate connection types, member sizes, and detailing to prevent overstressing and ensure load-carrying capacity.

Windward Side #

The windward side of a structure is the side that faces the direction from which… #

It is typically subjected to higher wind pressures and loads compared to the leeward side. Designing for windward side loads involves considering the effects of wind on the structural elements, such as cladding, openings, and connections, to prevent wind-induced failures.

Leeward Side #

The leeward side of a structure is the side that is sheltered from the direction… #

It is typically subjected to lower wind pressures and loads compared to the windward side. Designing for leeward side loads involves ensuring that the structure can safely resist the lower wind pressures and accommodate the wind-induced forces without compromising its stability.

Eccentric Load #

An eccentric load is a load that is applied off #

center or away from the axis of a structural member. It creates a moment that causes the member to bend, twist, or deform under load. Designing for eccentric loads involves considering the effects of the applied load on the member's capacity, stability, and overall structural behavior.

Vertical Load #

Vertical loads are forces that act in the vertical direction and cause compressi… #

These loads include dead loads, live loads, snow loads, and other vertical forces that act on the structure. Designing to resist vertical loads involves selecting appropriate member sizes, materials, and support conditions to ensure structural stability and safety.

Lateral Load #

Lateral loads are forces that act perpendicular to the longitudinal axis of a st… #

These loads include wind loads, seismic loads, and other lateral forces that act on the structure. Designing to resist lateral loads involves selecting appropriate bracing, connections, and detailing to prevent lateral instability and ensure structural integrity.

Gravity Load #

Gravity loads are the combined dead and live loads that act vertically on a stru… #

These loads create compressive and tensile forces in the structural elements, influencing the overall stability and performance of the structure. Designing to resist gravity loads involves calculating the total load and distributing it effectively to prevent overstressing and ensure structural safety.

Thermal Load #

Thermal loads are forces that result from temperature changes in the environment… #

These loads can cause expansion, contraction, and deformation in the structural elements, leading to potential stress concentrations and failures. Designing to resist thermal loads involves considering the effects of temperature variations on the material properties, connections, and overall structural behavior.

Secondary Load #

Secondary loads are loads that result from the deformation or movement of the st… #

These loads include forces caused by settlement, creep, shrinkage, temperature changes, and other secondary effects. Designing to resist secondary loads involves considering the long-term behavior of the structure and selecting appropriate detailing to accommodate these effects without compromising structural integrity.

Impact Factor #

The impact factor is a factor applied to a load to account for dynamic effects,… #

It is used to increase the calculated load to ensure that the structure can safely withstand the dynamic forces without failure. The impact factor is typically specified in design codes and standards to account for uncertainties and variations in loading conditions.

Factor of Safety #

The factor of safety is a ratio that represents the margin of safety between the… #

It is used to account for uncertainties, variations, and unexpected events in the design process. A higher factor of safety indicates a more conservative design approach, whereas a lower factor of safety may result in a more optimized design.

Load Duration Factor #

The load duration factor is a factor applied to a load to account for the durati… #

It considers the time during which the load acts on the structure and its effects on the material properties, deformation, and stability. The load duration factor is used to adjust the calculated load to ensure that the structure can safely resist the applied loads over time without compromising its performance.

Load Combination Factor #

The load combination factor is a factor applied to different types of loads to a… #

It considers the combined effects of dead loads, live loads, wind loads, snow loads, and other relevant loadings to determine the most critical loading scenarios. The load combination factor is used to ensure that the structure can safely resist the combined loads without failure.

Load Resistance Factor #

The load resistance factor is a factor applied to the calculated resistance of a… #

It is used to increase the calculated resistance to ensure that the structure can safely resist the applied loads without failure. The load resistance factor is typically specified in design codes and standards to ensure structural safety and reliability.

Load Effect #

A load effect is the response of a structure to an applied load, such as deflect… #

It represents the internal forces and stresses generated in the structural elements due to the applied loads. Understanding the load effects is essential for evaluating the structural performance, capacity, and behavior under different loading conditions.

Load Path Redundancy #

Load path redundancy refers to the presence of multiple load paths within a stru… #

It provides additional safety and resilience to the structure by ensuring that loads can be distributed effectively even if one load path fails. Designing for load path redundancy involves selecting redundant members, connections, and detailing to enhance structural stability and safety.

Load Distribution #

Load distribution is the process of spreading the applied loads throughout the s… #

It involves calculating the load path, selecting appropriate member sizes, and detailing connections to distribute the loads effectively and prevent localized failures. Proper load distribution is essential for maintaining structural integrity, stability, and safety.

Load Transfer Mechanism #

A load transfer mechanism is a method by which loads are transferred from one st… #

It includes the flow of forces and stresses through the connections, beams, columns, and other components to ensure structural stability and integrity. Different load transfer mechanisms, such as axial, bending, shear, and torsion, are used to distribute loads effectively and prevent overstressing of the structural elements.

Load Bearing Capacity #

Load bearing capacity is the maximum load that a structure can safely support wi… #

It represents the ultimate strength and stability of the structure under different loading conditions. Designing to meet the required load bearing capacity involves selecting appropriate materials, member sizes, connections, and detailing to ensure that the structure can safely resist the applied loads and maintain structural integrity.

Load Path Continuity #

Load path continuity refers to the uninterrupted flow of forces and stresses thr… #

It ensures that the loads can be effectively transferred from one member to another without causing localized failures or weak points. Designing for load path continuity involves selecting continuous members, connections, and detailing to maintain load transfer and structural stability throughout the structure.

Load Redistribution #

Load redistribution is the process by which loads are transferred from overloade… #

It involves redistributing the applied loads to ensure that the structure can safely carry the loads without compromising its stability or integrity. Load redistribution is essential for preventing progressive collapse, local failures, and overall structural instability.

Load Rating #

Load rating is the process of evaluating the capacity of an existing structure t… #

It involves assessing the structural elements, connections, materials, and overall condition of the structure to determine its load-carrying capacity and safety. Load rating is essential for ensuring the continued performance, stability, and safety of a steel structure throughout its service life.

Load Testing #

Load testing is the process of applying known loads to a structure to assess its… #

It involves measuring deflections, stresses, displacements, and other performance indicators to evaluate the structural integrity and safety. Load testing is essential for verifying the design assumptions, predicting the structural behavior, and ensuring compliance with design codes and standards.

Load Monitoring #

Load monitoring is the process of continuously measuring and recording the loads… #

It involves installing sensors, gauges, or monitoring devices to track the changes in loads, stresses, deformations, and other relevant parameters. Load monitoring is essential for detecting anomalies, predicting potential failures, and maintaining the structural integrity of a steel structure throughout its service life.

Load Calculation #

Load calculation is the process of determining the magnitude and distribution of… #

It involves analyzing the dead loads, live loads, wind loads, snow loads, seismic loads, and other relevant loadings to assess their effects on the structural elements. Load calculations are essential for designing the structure to safely resist the applied loads and ensuring structural stability, integrity, and safety.

Load Analysis #

Load analysis is the process of evaluating the effects of the applied loads on t… #

It involves calculating the internal forces, stresses, deflections, and other performance indicators to assess the structural response to different loading conditions. Load analysis is essential for verifying the design assumptions, predicting the structural behavior, and ensuring compliance with design codes and standards.

Load Combinations #

Load combinations are sets of different loadings that are applied simultaneously… #

These combinations typically include various combinations of dead loads, live loads, wind loads, snow loads, and other relevant loadings to determine the most critical loading scenarios. Designing for load combinations involves considering the effects of multiple loadings on the structure and selecting appropriate safety factors to ensure structural safety.

Load Resistance Factor Design #

Load resistance factor design (LRFD) is a design method that accounts for uncert… #

It involves increasing the calculated resistance to ensure that the structure can safely resist the applied loads without failure. LRFD is a performance-based design approach that aims to optimize the structural capacity, efficiency, and safety.

Allowable Stress Design #

Allowable stress design (ASD) is a design method that calculates the required si… #

It involves comparing the calculated stresses to the allowable stresses to ensure that the structure can safely resist the applied loads without exceeding the material limits. ASD is a traditional design approach that relies on the specified allowable stresses to ensure structural safety and performance.

Load Factor #

A load factor is a factor applied to a load to account for uncertainties, variat… #

It is used to increase the calculated load to ensure that the structure can safely withstand the applied loads without failure. Load factors are typically specified in design codes and standards to ensure structural safety and reliability.

Load Spectrum #

A load spectrum is a graphical representation of the frequency and magnitude of… #

It provides a visual representation of the load variations, cycles, and patterns that the structure may experience during its service life. Understanding the load spectrum is essential for predicting the structural response, fatigue life, and safety of a steel structure under different loading conditions.

Load Path Analysis #

Load path analysis is the process of evaluating the flow of forces and stresses… #

It involves tracing the load path from the point of application to the point of resistance to identify the critical load-carrying members, connections, and detailing. Load path analysis is essential for optimizing the structural efficiency, stability, and safety.

Load Transfer Efficiency #

Load transfer efficiency refers to the ability of a structure to effectively tra… #

It involves selecting appropriate connections, detailing, and member sizes to ensure that the loads can be distributed efficiently and evenly throughout the structure. Load transfer efficiency is essential for
